Subway Vibration Impact Assessment
GROUND VIBRATION EVALUATION
Evaluation of Ground Vibration
Ground Vibration Evaluation

We estimate damage from ground vibration generated by the road and railway traffic (subway) and on the affected area (where civil complaints are expected), evaluate compliance to the vibration regulation standards, predict the impact of ground vibration within the boundary of the business site, and establish the most optimal and effective measures for vibration isolation.

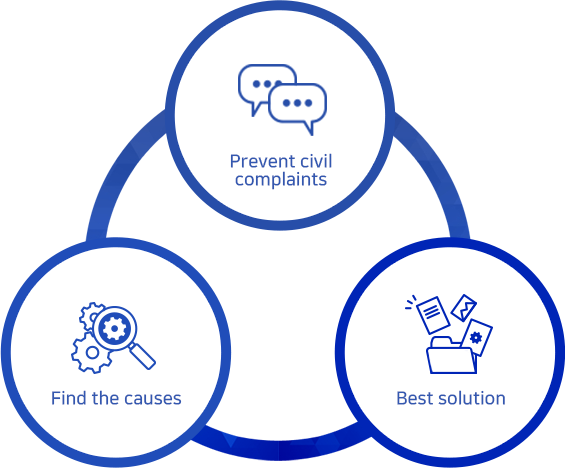

Necessity
01
Prevention of Civil Complaints
Increase in civil complaints due to subway (railway) and road traffic
Evaluating the violation generating facilities’ satisfaction with the vibration regulation standards
Proactive response to tarnishment of the company’s image and compensation problems caused by civil complaints
02
Finding Causes
Analysis of accurate causes of vibration
Evaluation of vibration influence from ground when designing a new business site (working facilities).
Prevention of future technical limitations on afterward installations due to the absence of measures
03
Solutions to Environmental Issues (Optimal Measures)
Analysis of influence on vibration source and effect of measures
Design of optimal vibration isolation such as use of vibration isolating material
Prevention of increase in construction costs caused by over-design
PROCESS
Layer of the soil (ground composition), vibration source, building arrangement
ANSYS / NASTRAN

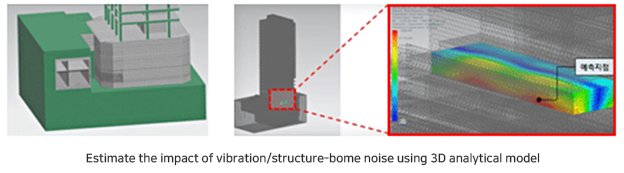

Analysis modeling
Drawing simulation and level contours

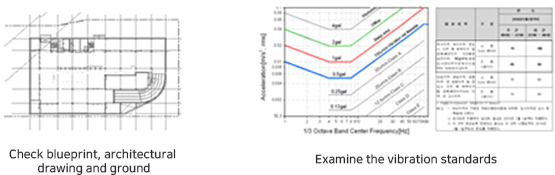

Examination of analysis results
Drawing an optimal plan
Consultation with client (economic feasibility, facility operability)
Confirmation of measures
Evaluation Case 1
Evaluation of Subway Vibrations
Subway Vibration Evaluation
Project Overview

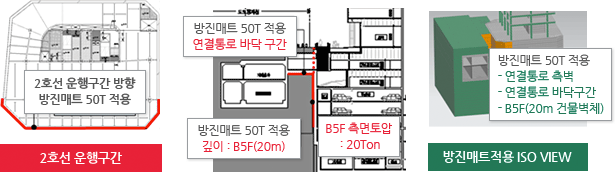

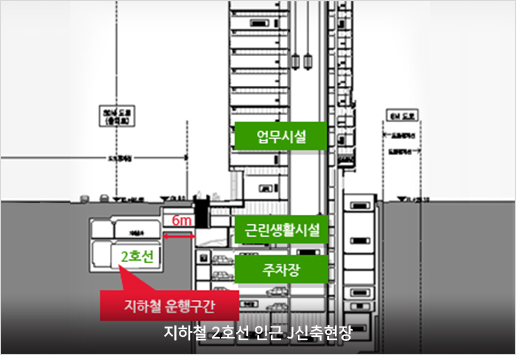

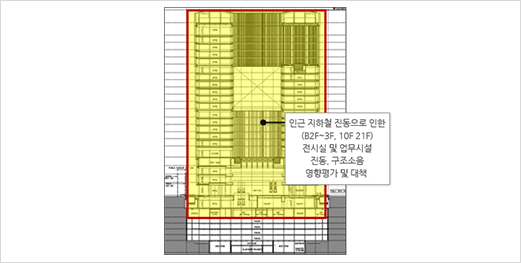

- A building scheduled to be newly constructed near an service section of subway line No. 2
- Examining vibration/structural noise in business facilities caused by vibrations generated when the subway is in operation
- Checking vibration/noise against recommended standards and taking vibration isolation measures when standards are exceeded
- Vibration isolation using Vibration Measures-HD-MAT-50T (using the Slurry WALL technique)
- Recommended standards for vibration/noise were met after taking vibration isolation measures.

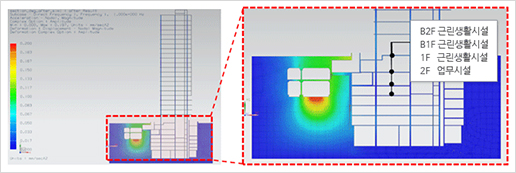

Status Prediction

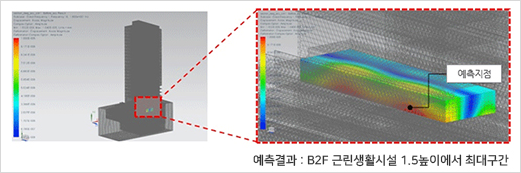

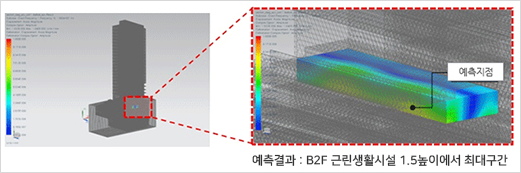

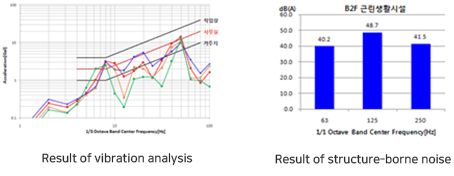

Prediction of Vibrations
Prediction of Structural Noise
Vibration Isolation Measures
Installation of vibration isolation mat in minimum application area after considering Economic feasibility

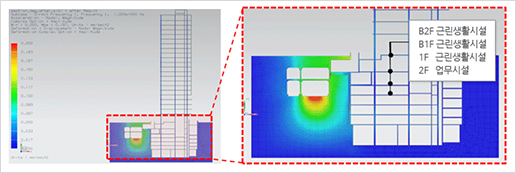

Prediction after Vibration Isolation Measures Taken
Prediction of Vibration
Prediction of Structural Noise

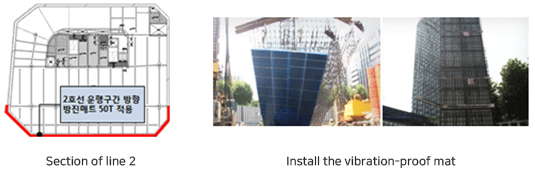

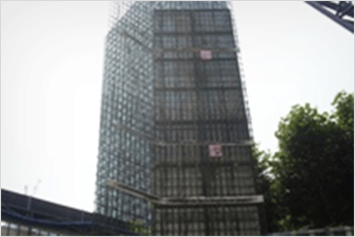

Installation of Vibration Isolation Measures

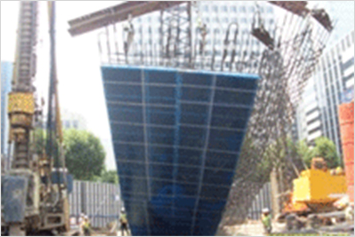

Installation of vibration isolation mat for section using 4Slurry Wall technique
> STEP 1

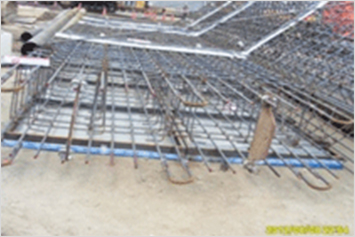

- Attaching rebar cage vibration isolation frame
> STEP 2

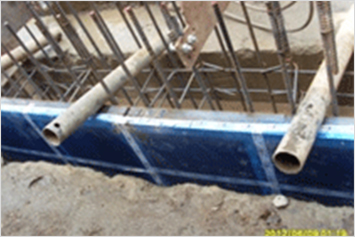

- Rebar cage + Vibration isolation mat lifting
> STEP 3
- Lifting for permanent wall insertions
> STEP 4

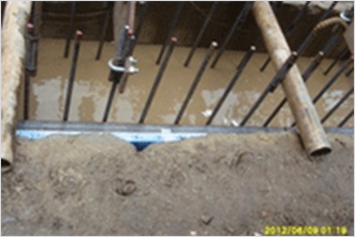

- Under insertion 1
> STEP 5

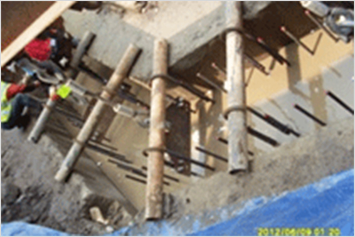

- Under insertion 2
> STEP 6
- Insertion Complete: Placement of concrete
Evaluation Case 2
Evaluation of Subway Vibration 2
Subway Vibration Evaluation 2
Project overview

- A building is scheduled to be constructed near a service section of subway line No. 4
- Examining vibration/Structural Noise in business facilities caused by vibration generated when subway is in operation
- Checking vibration/noise against recommended standards and taking vibration isolation measures when the standards are exceeded
- Vibration isolation using Vibration Measures-Po-MAT-50T (Application of Environmental Noise Impact)
- Vibration/noise recommended standards were met after taking vibration isolation measures

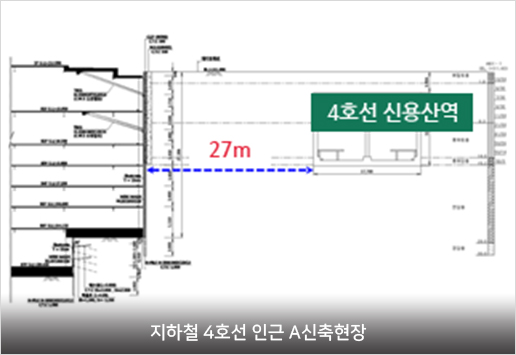

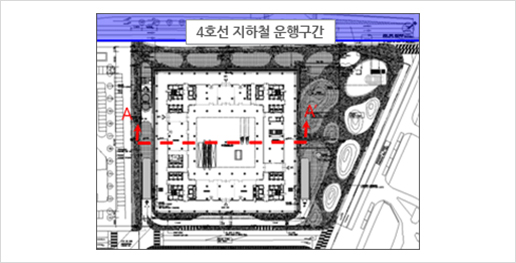

Ground plan
SECTION A-A’
Prediction of Status

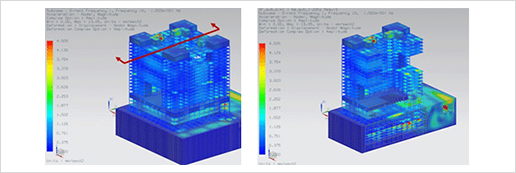

Prediction of Vibrations
Prediction of Structural Noise
Vibration Isolation Measures
Installation of vibration isolation mat in minimum application area after considering economic feasibility
Prediction after Vibration Isolation Measures Taken

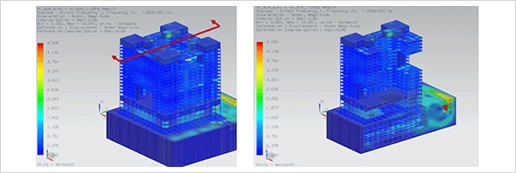

Prediction of Vibrations
Prediction of Structural Noise
Installation of Vibration Isolation Measures
Installation of vibration isolation mat in the C.I.P technique-applied area
Evaluation Case 3
Hospital Buildings (Examination of vibrations)
Hospital buildings (Vibration review)
Project Overview

- Construction of a hospital building
- Examining influence of vibrations generated by subway and building indoor facilities (air conditioner, pump, cooling tower) on precision equipment section (operation room)
- Checking against recommended vibration standards and taking vibration isolation measures when standards are exceeded
- Vibration isolation using Vibration Measures-vibration isolation spring and Po-MAT-50T
- Recommended standards for vibration/noise were met after taking vibration isolation measures

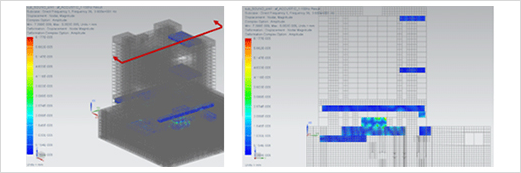

3D Modeling
Prediction of Status

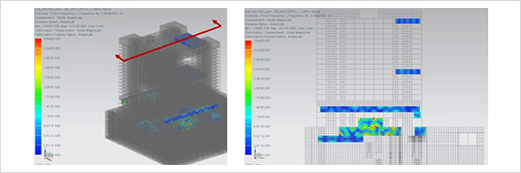

Prediction of Vibrations
Vibration Isolation Measures
Subway vibration measures: vibration isolation measures using Po-mat 50t (vibration isolation mat)

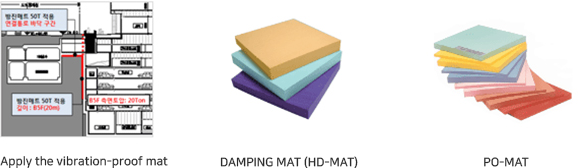

Indoor facility vibration measures: installation of double layer floor system using HD-MAT-25t (damping mat)
Prediction after measures taken
Prediction of Vibrations
